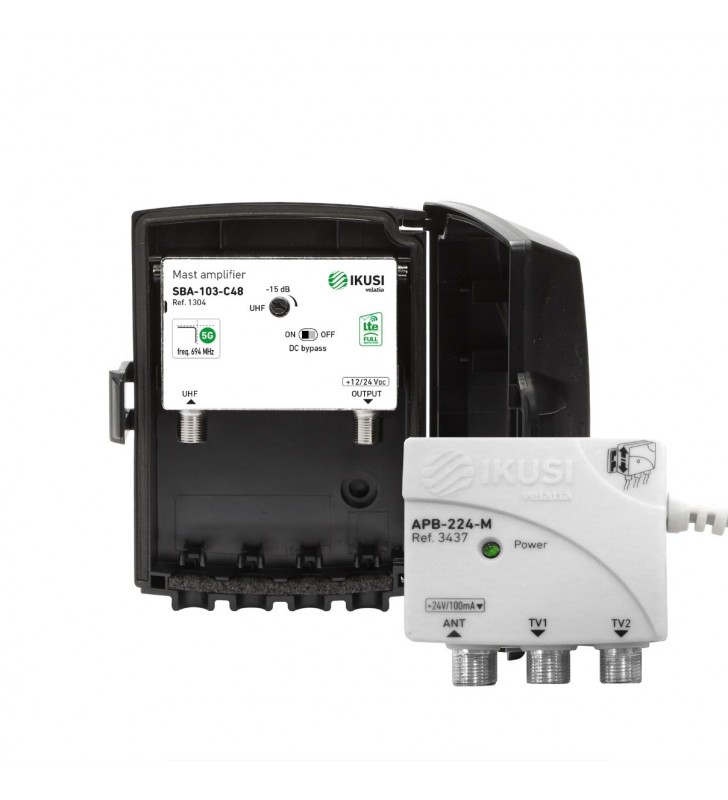

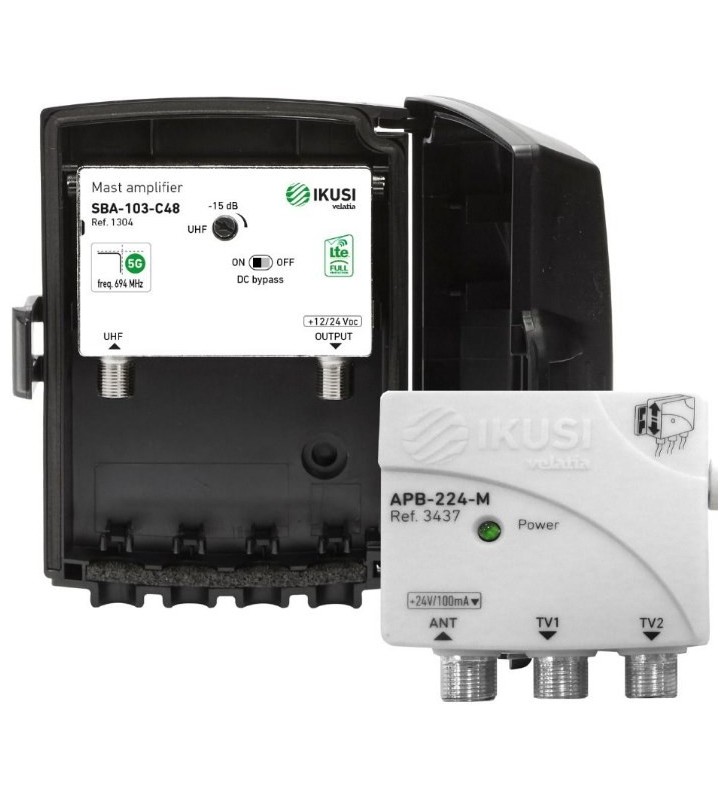

Ikusi Ενισχυτής Ιστού JSBA103-C48 UHF 35dB - Ikusi (1328)


JSBA103-C48 (Ref. 1304)_x000D_:
_x000D_:
_x000D_:
_x000D_:
Input_x000D_:
Band: UHF 21-48 (2nd digital dividend)Frequency range: 470…694 MHzGain: > 34 dBGain adjustment: 0~15 dBNoise figure: ? 3.0 dB_x000D_:
_x000D_:
_x000D_:
Output Level_x000D_:
Max. output level: 113 dBμV (DIN 45004B IMD-60dB)_x000D_:
_x000D_:
_x000D_:
Power Supply and Consumption_x000D_:
Power supply: +12 / +24 VDCConsumption: 60 / 70 mADC bypass: Yes_x000D_:
_x000D_:
_x000D_:
Mechanical_x000D_:
Operating temperature: -10... +60 ?CProtection level: IP 54Dimensions: 96 x 125 x 46 mmWeight: 0.370 Kg_x000D_:
_x000D_:
_x000D_:
Power supply: APB-224-M_x000D_:
Regulation type: Switch-modeInput / Outputs: 1 / 2 PCSMains voltage: 100~240 VAC / 50HzOutput voltage: +24 (±5%) VDCOutput current: 100 mA (max.)Frequency range: 47~862 MHzRF insertion loss: ?4 dBEfficiency: >70 %Dimensions: 50 x 50 x 25 mm_x000D_:
